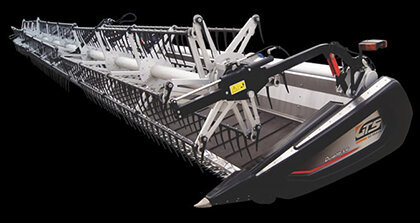

The Flexer line of drapers is synonymous with productivity. Thanks to consistency and easier adjustments, Flexer drapers harvest up to 1,000 more bags per day compared to conventional platforms and are compatible with most North American combines.
Flexer Prime
Models
DP25
Cutting Width (ft): 25
Total Length (ft): 28
Header Width (ft): 8
Weight (lbs): 6790
Chassis Material:Carbon Steel
DP30
Cutting Width (ft): 30
Total Length (ft): 33
Header Width (ft): 8
Weight (lbs): 7600
Chassis Material:Carbon Steel
DP35
Cutting Width (ft): 35
Total Length (ft): 38
Header Width (ft): 8
Weight (lbs): 8420
Chassis Material:Carbon Steel
Reel
Material: Carbon Steel
Number of Sections: 1
Number of Bars: 6
Fingers: Nylon 6 (PA)
Number of Attach Angles: 7
Cutter Bar
Transmission: Simple
Speed (Cycles per Minute): 554
Flex Amplitude (in): 7.9"
Locking System: Mechanical
Flexer S
Models
Ds35
Cutting Width (ft): 35
Total Length (ft): 38
Header Width (ft): 8
Weight (lbs): 8150
Chassis Material: Aluminum Alloy
Ds40
Cutting Width (ft): 40
Total Length (ft): 43
Header Width (ft): 8
Weight (lbs): 8790
Chassis Material: Aluminum Alloy
Ds45
Cutting Width (ft): 45
Total Length (ft): 48
Header Width (ft): 8
Weight (lbs): 9550
Chassis Material: Aluminum Alloy
Ds50
Cutting Width (ft): 50
Total Length (ft): 53
Header Width (ft): 8
Weight (lbs): 10310
Chassis Material: Aluminum Alloy
Reel
Material: Aluminum Alloy
Number of Sections: 3
Number of Bars: 6
Fingers: Nylon 6 (PA)
Number of Attach Angles: 7
Cutter Bar
Transmission: Dual Synchronized
Speed (Cycles per Minute): 554
Flex Amplitude (in): 7.9"
Locking System: Mechanical
